03-工作平面

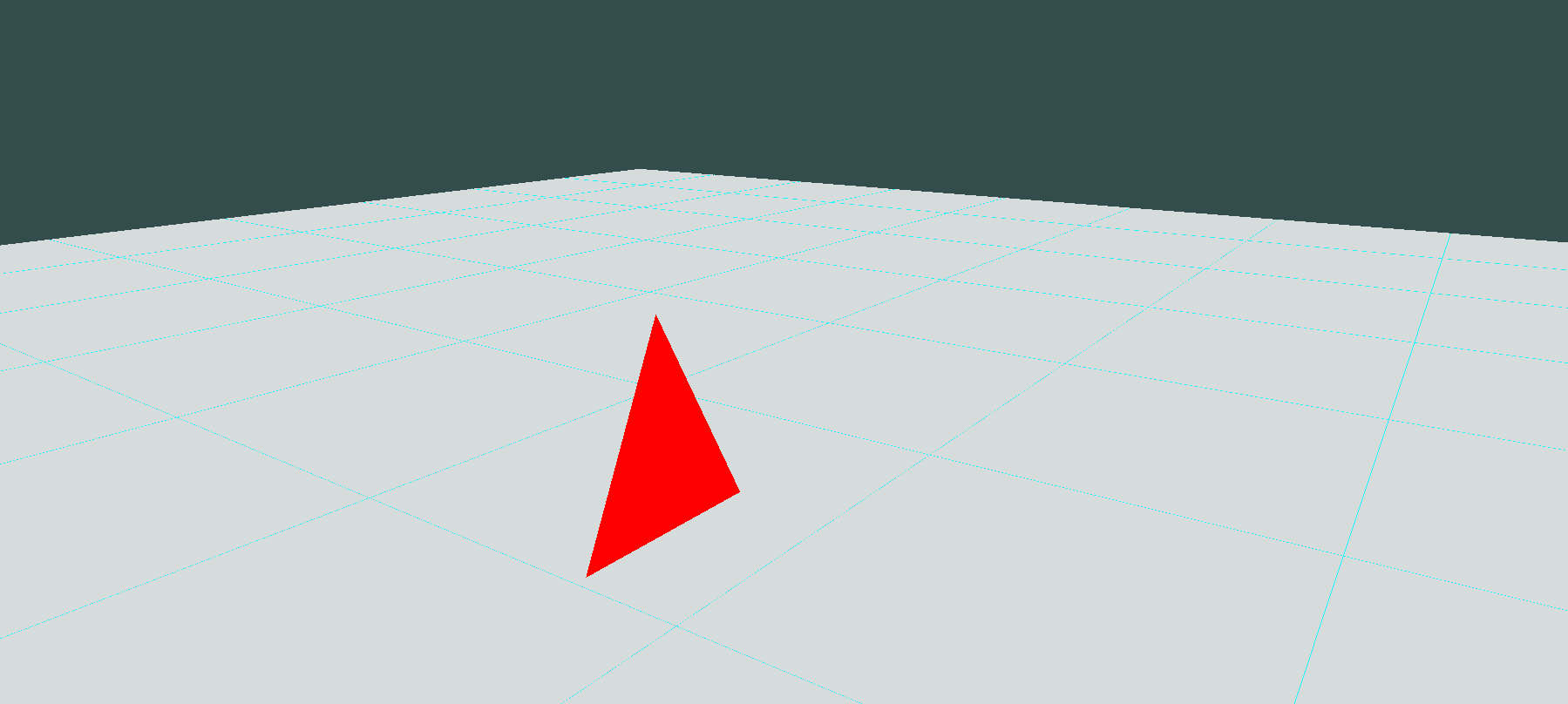

workPlane.h

#pragma once
#include <qopenglfunctions_4_5_core.h>
#include <qvector3d.h>

const float GRID_COLOR_R = 0.3f;
const float GRID_COLOR_G = 0.3f;
const float GRID_COLOR_B = 0.3f;

struct PlanePara
{
    QVector3D origin;        // 平面原点
    QVector3D normal;        // 平面法向量
    QVector3D localX;        // 平面本地X轴
    QVector3D localY;        // 平面本地Y轴
    float halfLength;        // 平面半长（原参数保留）
    unsigned int gridCntPerEdge; // 每边网格线数量（原参数保留）
    float offset;            // 平面偏移量（原参数保留）
};

class WorkPlane : public QOpenGLFunctions_4_5_Core
{
public:
    WorkPlane() {}
    ~WorkPlane() {}

    void initPlane(const PlanePara& para)
    {
        initializeOpenGLFunctions();
        m_planePara = para;

        initLocalXY(m_planePara.normal, m_planePara.localX, m_planePara.localY);
        generateGridLines(m_planePara);
    }

    void drawPlane()
    {
        glBindVertexArray(m_vao);
        glDrawArrays(GL_LINES, 0, m_gridVertexCount);
        glBindVertexArray(0);
    }

private:
    void initLocalXY(const QVector3D& normal, QVector3D& localX, QVector3D& localY)
    {
        QVector3D yAxis(0, 1, 0);
        QVector3D xAxis(1, 0, 0);

        QVector3D ref = (QVector3D::crossProduct(normal, xAxis).length() < 1e-6) ? yAxis : xAxis;
        localX = QVector3D::crossProduct(normal, ref).normalized();
        localY = QVector3D::crossProduct(normal, localX).normalized();
    }

    void generateGridLines(const PlanePara& para)
    {
        std::vector<float> gridVertices;
        float step = (2.0f * para.halfLength) / para.gridCntPerEdge;

        QVector3D start, end;
        float offset;

        //平行于X轴的线
        for (int i = 0; i <= para.gridCntPerEdge; i++)
        {
            offset = -para.halfLength + i * step;
            start = para.origin - para.halfLength * para.localX + offset * para.localY;
            end = para.origin + para.halfLength * para.localX + offset * para.localY;

            start += para.offset * para.normal;
            end += para.offset * para.normal;

            gridVertices.insert(gridVertices.end(),
                {
                    start.x(), start.y(), start.z(), GRID_COLOR_R, GRID_COLOR_G, GRID_COLOR_B,
                    end.x(), end.y(), end.z(), GRID_COLOR_R, GRID_COLOR_G, GRID_COLOR_B,
                });
        }

        //平行于y轴的线
        for (int i = 0; i <= para.gridCntPerEdge; i++)
        {
            offset = -para.halfLength + i * step;
            start = para.origin - para.halfLength * para.localY + offset * para.localX;
            end = para.origin + para.halfLength * para.localY + offset * para.localX;

            start += para.offset * para.normal;
            end += para.offset * para.normal;

            gridVertices.insert(gridVertices.end(),
                {
                    start.x(), start.y(), start.z(), GRID_COLOR_R, GRID_COLOR_G, GRID_COLOR_B,
                    end.x(), end.y(), end.z(), GRID_COLOR_R, GRID_COLOR_G, GRID_COLOR_B,
                });
        }

        m_gridVertexCount = gridVertices.size() / 6;

        glGenVertexArrays(1, &m_vao);
        glGenBuffers(1, &m_vbo);

        glBindVertexArray(m_vao);
        glBindBuffer(GL_ARRAY_BUFFER, m_vbo);
        glBufferData(GL_ARRAY_BUFFER, gridVertices.size() * sizeof(float), gridVertices.data(), GL_STATIC_DRAW);

        glVertexAttribPointer(0, 3, GL_FLOAT, GL_FALSE, 6 * sizeof(float), (void*)0);
        glEnableVertexAttribArray(0);
        glVertexAttribPointer(1, 3, GL_FLOAT, GL_FALSE, 6 * sizeof(float), (void*)(3 * sizeof(float)));
        glEnableVertexAttribArray(1);

        glBindVertexArray(0);
    }

private:
    unsigned int m_vao, m_vbo;
    PlanePara m_planePara;
    int m_gridVertexCount;           // 网格顶点总数
};

glview.h

#include <qopenglwidget.h>
#include <qopenglfunctions_4_5_core.h>
#include <qopenglshaderprogram.h>
#include <qopenglvertexarrayobject.h>
#include <qopenglbuffer.h>
#include <QMouseEvent>
#include "camera.h"
#include "workPlane.h"

class GLWidget : public QOpenGLWidget ,protected QOpenGLFunctions_4_5_Core
{
    Q_OBJECT

public:
    GLWidget(QWidget* parent = nullptr)
    {
        setMouseTracking(true);
    }
    ~GLWidget() {}

    void initializeGL() override
    {
        initializeOpenGLFunctions();

        initShader(m_shader, QString("./shader/LoadingShader.vert"), QString("./shader/LoadingShader.frag"));
        initTriangle();
        initPlane();
    }

    void resizeGL(int width,int height) override
    {
        glViewport(0, 0, width, height);
        m_camera.Init(width, height);

        m_projectionMat.setToIdentity();
        m_projectionMat.perspective(45.0f, width / height, 0.1f, 100.0f);
    }

    void paintGL() override
    {
        glEnable(GL_DEPTH_TEST);

        m_shader.bind();

        m_modelMat.setToIdentity();

        m_viewMat = m_camera.getViewMatrix();

        //m_viewMat.lookAt(QVector3D(0.0f, 0.0f, 5.0f), QVector3D(0.0f, 0.0f, 0.0f), QVector3D(0.0f, 1.0f, 0.0f));
        m_shader.setUniformValue("model", m_modelMat);
        m_shader.setUniformValue("view", m_viewMat);
        m_shader.setUniformValue("projection", m_projectionMat);
        drawTriangle();

        m_workPlane.drawPlane();
        m_shader.release();
    }

    void initShader(QOpenGLShaderProgram& shader,const QString& vertShaderPath,const QString& fragShaderPath)
    {
        if (!shader.addShaderFromSourceFile(QOpenGLShader::Vertex, vertShaderPath) ||
            !shader.addShaderFromSourceFile(QOpenGLShader::Fragment, fragShaderPath) ||
            !shader.link())
        {
            qDebug() << shader.log();
        }
    }

    void initPlane()
    {
        PlanePara para;
        para.origin = QVector3D(0.0f, -1.0f, 0.0f);
        para.normal = QVector3D(0.0f, 1.0f, 0.0f); // 向上的法向量（Y轴）
        para.halfLength = 25.0f;
        para.gridCntPerEdge = 32;
        para.offset = 0.0f; // 平面基础偏移（Y=0.1f）

        m_workPlane.initPlane(para);
    }

    void initTriangle()
    {
        float vertices[] =
        {
            //position       color
            -0.5f,0.0f,0.5f, 0.5f,0.5f,0.0f,
            0.0f,0.5f,0.5f, 0.5f,0.5f,0.5f,
            0.5f,0.0f,0.5f, 0.5f,0.0f,0.5f,
        };

        glGenVertexArrays(1, &m_vao);
        glGenBuffers(1, &m_vbo);

        glBindVertexArray(m_vao);
        glBindBuffer(GL_ARRAY_BUFFER, m_vbo);

        glBufferData(GL_ARRAY_BUFFER, sizeof(vertices), vertices, GL_STATIC_DRAW);
        glVertexAttribPointer(0, 3, GL_FLOAT, GL_FALSE, 6 * sizeof(float), (void*)0);
        glEnableVertexAttribArray(0);
        glVertexAttribPointer(1, 3, GL_FLOAT, GL_FALSE, 6 * sizeof(float), (void*)(3 * sizeof(float)));
        glEnableVertexAttribArray(1);

        glBindVertexArray(0);
    }

    void drawTriangle()
    {
        glBindVertexArray(m_vao);
        glDrawArrays(GL_TRIANGLES, 0, 3);
        glBindVertexArray(0);
    }

protected:
    bool event(QEvent* e) override
    {
        m_camera.handle(e);
        update();

        return QWidget::event(e);
    }

private:
    QOpenGLShaderProgram m_shader;
    unsigned int m_vao, m_vbo;

    QMatrix4x4 m_modelMat;
    QMatrix4x4 m_viewMat;
    QMatrix4x4 m_projectionMat;
    Camera m_camera = Camera(QVector3D(0.0f, 0.0f, 5.0f));
    WorkPlane m_workPlane;
};

[源码下载]
