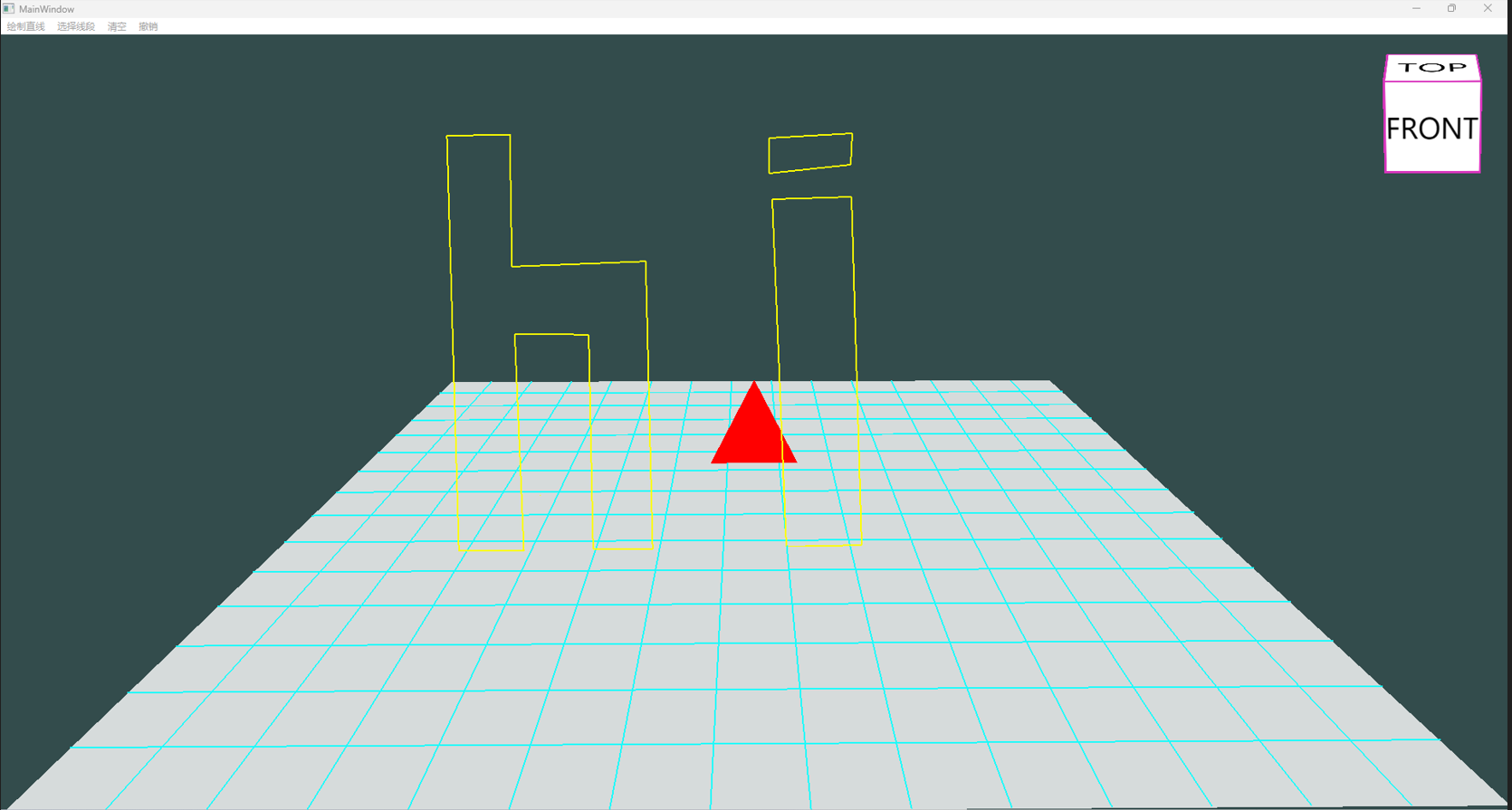

05-绘制直线与选中删除

LineDrawer.h

#pragma once
#include <QOpenGLFunctions_4_5_Core>
#include <QOpenGLShaderProgram>
#include <QVector3D>
#include <vector>
#include <qdebug.h>

// 定义全局无效点常量（三个分量均为正无穷大）
const QVector3D INVALID_POINT(
    std::numeric_limits<float>::infinity(),  // x分量：正无穷大
    std::numeric_limits<float>::infinity(),  // y分量：正无穷大
    std::numeric_limits<float>::infinity()   // z分量：正无穷大
);

class LineDrawer : protected QOpenGLFunctions_4_5_Core
{
public:
    LineDrawer() {
        m_isDrawing = false;
        m_selectedIndex = -1; // 初始无选中线段
        m_selectedColor = QVector4D(1.0f, 0.0f, 0.0f, 1.0f); // 选中颜色（红色）
    }
    ~LineDrawer() { cleanup(); }

    // 初始化VAO/VBO（在initializeGL中调用）
    void init()
    {
        initializeOpenGLFunctions();
        // 创建VAO和VBO
        glGenVertexArrays(1, &m_lineVAO);
        glGenBuffers(1, &m_lineVBO);
        // 初始顶点数据（起点+终点，默认原点）
        m_vertices = { 0.0f, 0.0f, 0.0f, 0.0f, 0.0f, 0.0f };
    }

    // 获取所有端点的接口
    std::vector<QVector3D> getAllEndpoints() const {
        std::vector<QVector3D> points;
        for (const auto& line : m_savedLines) {
            points.push_back(line.first);
            points.push_back(line.second);
        }
        return points;
    }

    // 获取所有线段（用于点击检测）
    const std::vector<std::pair<QVector3D, QVector3D>>& getAllLines() const {
        return m_savedLines;
    }

    // 设置直线颜色（支持当前绘制线、已保存线和选中线）
    void setCurrentLineColor(const QVector4D& color) { m_currentLineColor = color; }
    void setSavedLineColor(const QVector4D& color) { m_savedLineColor = color; }
    void setSelectedColor(const QVector4D& color) { m_selectedColor = color; }

    // 删除所有直线
    void clearAllLines() {
        m_isDrawing = false;
        m_savedLines.clear();
        m_selectedIndex = -1; // 清空选中状态
        m_vertices = { 0.0f, 0.0f, 0.0f, 0.0f, 0.0f, 0.0f };
        updateVertexData();
    }

    // 撤销最近绘制的线段
    void undoLastLine() {
        if (!m_savedLines.empty()) {
            m_savedLines.pop_back();
            // 若撤销的是选中线段，取消选中状态
            if (m_selectedIndex == m_savedLines.size()) {
                m_selectedIndex = -1;
            }
        }
    }

    //删除选中的直线段
    void deleteSelectedLine()
    {
        if (!m_savedLines.empty() && (m_selectedIndex < m_savedLines.size()))
        {
            m_savedLines.erase(m_savedLines.begin() + m_selectedIndex);
            m_delRecordStartPos = m_savedLines[m_selectedIndex].first;
            m_selectedIndex = -1;
        }
    }

    // 开始绘制
    void startDraw(const QVector3D& startPos)
    {
        m_isDrawing = true;
        m_startPos = startPos;
        m_endPos = startPos;
        updateVertexData();
    }

    // 更新绘制
    void updateDraw(const QVector3D& currentPos)
    {
        if (!m_isDrawing) return;
        m_endPos = currentPos;
        updateVertexData();
    }

    //保存已经绘制的直线
    void saveDrawnLine()
    {
        m_isDrawing = false;
        m_savedLines.push_back({ m_startPos, m_endPos });
    }

    // 结束绘制
    void finishDraw()
    {
        m_isDrawing = false;
        m_selectedIndex = -1;//恢复未选中状态
        if (m_delRecordStartPos != m_startPos)
        {
            m_savedLines.push_back({ m_startPos, m_endPos });
        }

        m_delRecordStartPos = INVALID_POINT;
    }

    void draw(QOpenGLShaderProgram& shader)
    {
        if (!m_isDrawing && m_savedLines.empty()) return;

        shader.bind();
        glBindVertexArray(m_lineVAO);
        glLineWidth(2.0f); // 线宽（可调整）

        // 1. 绘制当前正在绘制的直线（保持原逻辑）
        if (m_isDrawing)
        {
            shader.setUniformValue("lineColor", m_currentLineColor);
            glDrawArrays(GL_LINES, 0, 2);
        }

        // 2. 绘制已保存的线段（关键修改：逐线段绘制，区分选中状态）
        if (!m_savedLines.empty())
        {
            // 临时存储单条线段的顶点数据（2个点，每个点3个坐标）
            std::vector<float> singleLineVertices(6);

            for (size_t i = 0; i < m_savedLines.size(); ++i)
            {
                const auto& line = m_savedLines[i];
                // 填充当前线段的顶点数据
                singleLineVertices[0] = line.first.x();  // 起点X
                singleLineVertices[1] = line.first.y();  // 起点Y
                singleLineVertices[2] = line.first.z();  // 起点Z
                singleLineVertices[3] = line.second.x(); // 终点X
                singleLineVertices[4] = line.second.y(); // 终点Y
                singleLineVertices[5] = line.second.z(); // 终点Z

                // 3. 设置当前线段的颜色（选中则红色，否则默认色）
                if (i == m_selectedIndex)
                {
                    // 选中颜色：红色（RGBA）
                    shader.setUniformValue("lineColor", m_selectedColor);
                }
                else
                {
                    // 未选中：默认已保存线颜色
                    shader.setUniformValue("lineColor", m_savedLineColor);
                }

                // 4. 更新VBO并绘制当前线段
                glBindBuffer(GL_ARRAY_BUFFER, m_lineVBO);
                glBufferData(GL_ARRAY_BUFFER, singleLineVertices.size() * sizeof(float),
                singleLineVertices.data(), GL_DYNAMIC_DRAW); // 动态更新单条线段
                // 设置顶点属性（位置）
                glVertexAttribPointer(0, 3, GL_FLOAT, GL_FALSE, 3 * sizeof(float), (void*)0);
                glEnableVertexAttribArray(0);
                // 绘制单条线段（GL_LINES 模式，2个顶点）
                glDrawArrays(GL_LINES, 0, 2);
            }
        }

        glBindVertexArray(0);
        shader.release();
    }

    // 清理资源
    void cleanup()
    {
        glDeleteVertexArrays(1, &m_lineVAO);
        glDeleteBuffers(1, &m_lineVBO);
        m_vertices.clear();
        m_savedLines.clear();
        m_selectedIndex = -1;
    }

    // 选中状态管理
    void setSelectedIndex(int index) {
        // 索引有效性检查
        if (index < -1 || static_cast<size_t>(index) >= m_savedLines.size()) {
            m_selectedIndex = -1;
        }
        else {
            m_selectedIndex = index;
        }
    }

    int getSelectedIndex() const { return m_selectedIndex; }

    QVector3D getCurrentLineStart() const {
        return m_startPos;
    }

    bool isDrawing() const { return m_isDrawing; }

private:
    // 更新顶点数据到VBO
    void updateVertexData()
    {
        m_vertices[0] = m_startPos.x();
        m_vertices[1] = m_startPos.y();
        m_vertices[2] = m_startPos.z();
        m_vertices[3] = m_endPos.x();
        m_vertices[4] = m_endPos.y();
        m_vertices[5] = m_endPos.z();

        glBindVertexArray(m_lineVAO);
        glBindBuffer(GL_ARRAY_BUFFER, m_lineVBO);
        glBufferData(GL_ARRAY_BUFFER, m_vertices.size() * sizeof(float), m_vertices.data(), GL_DYNAMIC_DRAW);
        glVertexAttribPointer(0, 3, GL_FLOAT, GL_FALSE, 3 * sizeof(float), (void*)0);
        glEnableVertexAttribArray(0);
        glBindVertexArray(0);
    }

private:
    unsigned int m_lineVAO = 0, m_lineVBO = 0;
    std::vector<float> m_vertices; // 顶点数据：[x1,y1,z1, x2,y2,z2]
    QVector3D m_startPos, m_endPos;
    QVector3D m_delRecordStartPos = INVALID_POINT;//记录已经删除的直线的起点
    bool m_isDrawing;//正在绘制（鼠标左键按下置为true, 鼠标移动时都为true, 左键松开置为false）
    std::vector<std::pair<QVector3D, QVector3D>> m_savedLines; // 保存已完成线段
    int m_selectedIndex; // 当前选中线段索引（-1表示无选中）

    // 颜色属性
    float m_fixedDepth = -5.0f;
    QVector4D m_currentLineColor = { 1.0f, 0.0f, 0.0f, 1.0f }; // 当前绘制线（红色）
    QVector4D m_savedLineColor = { 0.0f, 1.0f, 0.0f, 1.0f };   // 已保存线（绿色）
    QVector4D m_selectedColor = { 1.0f, 1.0f, 0.0f, 1.0f };   // 点击选中的线（绿色）
};

workPlane.h

 #pragma once
#include <QOpenGLFunctions_3_3_Core>
#include <QVector3D>
#include <vector>

// 颜色常量定义
const float PLANE_COLOR_R = 0.839f;
const float PLANE_COLOR_G = 0.859f;
const float PLANE_COLOR_B = 0.859f;
const float GRID_COLOR_R = 0.102f;
const float GRID_COLOR_G = 0.984f;
const float GRID_COLOR_B = 0.984f;
const float GRID_OFFSET = 0.001f; // 统一网格线偏移量
const float GRID_Y_OFFSET = 0.01f; // 新增：网格线y方向位移量

struct PlanePara
{
    QVector3D origin;
    QVector3D normal;
    QVector3D localX;
    QVector3D localY;
    float halfLength;
    unsigned int gridCntPerEdge;//网格线数量
    float offset;
};

// 继承 QOpenGLFunctions_3_3_Core 以绑定 OpenGL 函数
class WorkPlane : public QOpenGLFunctions_3_3_Core
{
public:
    WorkPlane()
        : m_planeVAO(0), m_planeVBO(0), m_planeEBO(0)
        , m_planeIndexCount(0)
        , m_gridVAO(0), m_gridVBO(0)
        , m_gridVertexCount(0)
    {
    }

    ~WorkPlane()
    {
        // 释放 OpenGL 资源
        glDeleteVertexArrays(1, &m_planeVAO);
        glDeleteBuffers(1, &m_planeVBO);
        glDeleteBuffers(1, &m_planeEBO);
        glDeleteVertexArrays(1, &m_gridVAO);
        glDeleteBuffers(1, &m_gridVBO);
    }

    void initPlane(const PlanePara& para)
    {
        // 初始化 OpenGL 函数（必须调用，绑定上下文）
        initializeOpenGLFunctions();

        // 复制传入参数到成员变量
        m_para = para;

        // 生成局部坐标系
        getLocalXY(m_para.normal, m_para.localX, m_para.localY);

        // 清空之前的网格点数据（避免重复初始化时数据叠加）
        m_gridPoints.clear();
        // 绘制平面和网格线
        generatePlaneBase(m_para);
        generateGridLines(m_para);
    }

    void drawPlane()
    {
        // 绘制平面基底
        glBindVertexArray(m_planeVAO);
        glDrawElements(GL_TRIANGLES, m_planeIndexCount, GL_UNSIGNED_INT, 0);

        // 绘制网格线
        glBindVertexArray(m_gridVAO);
        glDrawArrays(GL_LINES, 0, m_gridVertexCount);

        // 解绑 VAO
        glBindVertexArray(0);
    }

    // 计算射线与工作平面的交点（返回是否相交）
    bool getRayPlaneIntersection(
        const QVector3D& rayOrigin,    // 射线起点（摄像机位置）
        const QVector3D& rayDir,      // 射线方向
        const PlanePara& plane,       // 工作平面参数
        QVector3D& outIntersection    // 输出交点
    ) {
        // 平面方程：(P - origin) · normal = 0
        float denominator = QVector3D::dotProduct(rayDir, plane.normal);
        if (qAbs(denominator) < 1e-6) return false; // 射线与平面平行，无交点

        float t = QVector3D::dotProduct(plane.origin - rayOrigin, plane.normal) / denominator;
        if (t < 0) return false; // 交点在射线后方（摄像机背后）

        outIntersection = rayOrigin + rayDir * t;
        return true;
    }

    // 获取网格交叉点列表
    const std::vector<QVector3D>& gridPoints() const { return m_gridPoints; }
    // 获取平面参数（origin、normal等）
    const PlanePara& para() const { return m_para; }

private:
    void getLocalXY(const QVector3D& normal, QVector3D& localX, QVector3D& localY)
    {
        QVector3D ref = (qAbs(normal.y()) < 0.999f) ? QVector3D(0, 1, 0) : QVector3D(1, 0, 0);
        localX = QVector3D::crossProduct(normal, ref).normalized();
        localY = QVector3D::crossProduct(normal, localX).normalized();
    }

    void generatePlaneBase(const PlanePara& para)
    {
        //计算出平面四个顶点
        QVector3D pts[4];
        pts[0] = para.origin + (para.halfLength * -para.localX) + (para.halfLength * -para.localY) + (para.offset * para.normal);
        pts[1] = para.origin + (para.halfLength * para.localX) + (para.halfLength * -para.localY) + (para.offset * para.normal);
        pts[2] = para.origin + (para.halfLength * para.localX) + (para.halfLength * para.localY) + (para.offset * para.normal);
        pts[3] = para.origin + (para.halfLength * -para.localX) + (para.halfLength * para.localY) + (para.offset * para.normal);

        // 平面顶点数据（使用常量颜色）
        std::vector<float> vertices = {
            pts[0].x(), pts[0].y(), pts[0].z(), PLANE_COLOR_R, PLANE_COLOR_G, PLANE_COLOR_B,
            pts[1].x(), pts[1].y(), pts[1].z(), PLANE_COLOR_R, PLANE_COLOR_G, PLANE_COLOR_B,
            pts[2].x(), pts[2].y(), pts[2].z(), PLANE_COLOR_R, PLANE_COLOR_G, PLANE_COLOR_B,
            pts[3].x(), pts[3].y(), pts[3].z(), PLANE_COLOR_R, PLANE_COLOR_G, PLANE_COLOR_B
        };

        unsigned int indices[] = { 0, 1, 2, 0, 2, 3 };
        m_planeIndexCount = sizeof(indices) / sizeof(unsigned int);

        // 生成并配置 VAO/VBO/EBO
        glGenVertexArrays(1, &m_planeVAO);
        glGenBuffers(1, &m_planeVBO);
        glGenBuffers(1, &m_planeEBO);

        glBindVertexArray(m_planeVAO);
        glBindBuffer(GL_ARRAY_BUFFER, m_planeVBO);
        glBufferData(GL_ARRAY_BUFFER, vertices.size() * sizeof(float), vertices.data(), GL_STATIC_DRAW);

        glBindBuffer(GL_ELEMENT_ARRAY_BUFFER, m_planeEBO);
        glBufferData(GL_ELEMENT_ARRAY_BUFFER, sizeof(indices), indices, GL_STATIC_DRAW);

        // 配置顶点位置属性
        glVertexAttribPointer(0, 3, GL_FLOAT, GL_FALSE, 6 * sizeof(float), (void*)0);
        glEnableVertexAttribArray(0);
        // 配置顶点颜色属性
        glVertexAttribPointer(1, 3, GL_FLOAT, GL_FALSE, 6 * sizeof(float), (void*)(3 * sizeof(float)));
        glEnableVertexAttribArray(1);

        glBindVertexArray(0);
    }

    void generateGridLines(const PlanePara& para)
    {
        std::vector<float> gridVertices;
        float step = 2.0f * para.halfLength / para.gridCntPerEdge;

        // 计算网格交叉点（同样添加y方向位移）
        {
            std::vector<float> xCoords, yCoords;
            xCoords.push_back(-para.halfLength);
            yCoords.push_back(-para.halfLength);
            for (int i = 1; i < para.gridCntPerEdge; ++i) {
                xCoords.push_back(-para.halfLength + i * step);
                yCoords.push_back(-para.halfLength + i * step);
            }
            xCoords.push_back(para.halfLength);
            yCoords.push_back(para.halfLength);

            for (float x : xCoords) {
                for (float y : yCoords) {
                    QVector3D point = para.origin
                        + x * para.localX
                        + y * para.localY
                        + para.offset * para.normal;
                    point.setY(point.y() + GRID_Y_OFFSET); // 网格交叉点y方向位移
                    m_gridPoints.push_back(point);
                }
            }
        }

        // X方向网格线（平行于localX）
        for (int i = 1; i < para.gridCntPerEdge; ++i)
        {
            float yPos = -para.halfLength + i * step;

            QVector3D start = para.origin - para.halfLength * para.localX + yPos * para.localY;
            QVector3D end = para.origin + para.halfLength * para.localX + yPos * para.localY;

            start += para.offset * para.normal;
            end += para.offset * para.normal;

            // 关键修改1：X方向网格线y位移
            start.setY(start.y() + GRID_Y_OFFSET);
            end.setY(end.y() + GRID_Y_OFFSET);

            gridVertices.insert(gridVertices.end(),
                {
                    start.x(), start.y(), start.z(), GRID_COLOR_R, GRID_COLOR_G, GRID_COLOR_B,
                    end.x(),   end.y(),   end.z(),   GRID_COLOR_R, GRID_COLOR_G, GRID_COLOR_B
                });
        }

        // Y方向网格线（平行于localY）
        for (int i = 1; i < para.gridCntPerEdge; ++i)
        {
            float xPos = -para.halfLength + i * step;

            QVector3D start = para.origin - para.halfLength * para.localY + xPos * para.localX;
            QVector3D end = para.origin + para.halfLength * para.localY + xPos * para.localX;

            start += para.offset * para.normal;
            end += para.offset * para.normal;

            // 关键修改2：Y方向网格线y位移
            start.setY(start.y() + GRID_Y_OFFSET);
            end.setY(end.y() + GRID_Y_OFFSET);

            gridVertices.insert(gridVertices.end(),
                {
                    start.x(), start.y(), start.z(), GRID_COLOR_R, GRID_COLOR_G, GRID_COLOR_B,
                    end.x(),   end.y(),   end.z(),   GRID_COLOR_R, GRID_COLOR_G, GRID_COLOR_B
                });
        }

        m_gridVertexCount = gridVertices.size() / 6;

        // 生成并配置 VAO/VBO
        glGenVertexArrays(1, &m_gridVAO);
        glGenBuffers(1, &m_gridVBO);

        glBindVertexArray(m_gridVAO);
        glBindBuffer(GL_ARRAY_BUFFER, m_gridVBO);
        glBufferData(GL_ARRAY_BUFFER, gridVertices.size() * sizeof(float), gridVertices.data(), GL_STATIC_DRAW);

        // 配置顶点位置属性
        glVertexAttribPointer(0, 3, GL_FLOAT, GL_FALSE, 6 * sizeof(float), (void*)0);
        glEnableVertexAttribArray(0);
        // 配置顶点颜色属性
        glVertexAttribPointer(1, 3, GL_FLOAT, GL_FALSE, 6 * sizeof(float), (void*)(3 * sizeof(float)));
        glEnableVertexAttribArray(1);

        glBindVertexArray(0);
    }

private:
    PlanePara m_para;//平面参数
    unsigned int m_planeVAO, m_planeVBO, m_planeEBO;
    int m_planeIndexCount;
    unsigned int m_gridVAO, m_gridVBO;
    int m_gridVertexCount;
    std::vector<QVector3D> m_gridPoints; // 存储所有网格交叉点
};

glview.h

#pragma once
#include <qopenglwidget.h>

#include <qopenglshaderprogram.h>
#include <QMouseEvent>
#include <qmenu.h>

#include "model.h"
#include "camera.h"
#include "workPlane.h"
#include "viewCube.h"
#include "LineDrawer.h"

class GLView : public QOpenGLWidget, QOpenGLFunctions_4_5_Core
{
    Q_OBJECT
public:
    explicit GLView(QWidget* parent = nullptr);
    ~GLView();

    void beginDrawLines();
    void clearAllLines();
    void undoLastLine();
    void selectLine();


protected:
    virtual void initializeGL();
    virtual void resizeGL(int w,int h);
    virtual void paintGL();
    virtual bool event(QEvent* e);

    void initWorkPlane();

    QVector3D screenToWorld_3D_PointSnap(const QPoint& pos);
    QVector3D screenToWorldRawRay(const QPoint& pos);
    float rayLineDistance(const QPoint& mousePos, const QVector3D& rayOrigin, const QVector3D& rayDir, const QVector3D& lineStart, const QVector3D& lineEnd);
    bool checkLineHit(const QPoint& mousePos);
    bool getRayPlaneIntersection(const QVector3D& rayOrigin, const QVector3D& rayDir, const QVector3D& planeOrigin, const QVector3D& planeNormal, QVector3D& outIntersection);

private:
    void initShader(QOpenGLShaderProgram& shader, const QString& vertexFile, const QString& fragFile);

private:
    Model* m_model{ nullptr };
    Camera m_camera = Camera(this, QVector3D(0.0f, 0.0f, 5.0f));

    //mvp矩阵
    QMatrix4x4 m_modelMat;//自动为单位阵
    QMatrix4x4 m_viewMat;
    QMatrix4x4 m_projectionMat;

    //着色器程序
    QOpenGLShaderProgram m_lightShader;
    QOpenGLShaderProgram m_viewCubeShader;
    QOpenGLShaderProgram m_drawLineShader;

    //工作平面
    WorkPlane* m_workPlane{ nullptr };

    //视图立方体
    ViewCube* m_viewCube{ nullptr };

    QMatrix4x4 m_modelCube;
    QMatrix4x4 m_viewMatNoTrans;
    QMatrix4x4 m_projection4ViewCube;
    QMatrix4x4 m_finalProjection;

    //直线绘制
    LineDrawer m_lineDrawer;

    bool b_drawLineState = false;

    // 新增：绘制平面参数（垂直工作平面且朝向视角）
    QVector3D m_drawPlaneOrigin;     // 平面原点（过直线起点）
    QVector3D m_drawPlaneNormal;     // 平面法向量（垂直工作平面，朝向视角）
    bool m_enableDrawPlane = true;   // 是否启用平面约束

    bool b_selectLineState = false;

    QMenu* m_onSelectMenu = nullptr;
    QAction* m_action_deleteSelecedLine = nullptr;

signals:

};

glview.cpp

#include "glview.h"
#include <QMouseEvent>
#include <qdebug.h>

GLView::GLView(QWidget* parent)
    : QOpenGLWidget{ parent }, m_workPlane(nullptr), m_model(nullptr), m_viewCube(nullptr)
    , b_drawLineState(false), b_selectLineState(false), m_enableDrawPlane(true)
{
    m_action_deleteSelecedLine = new QAction("delete");
    m_onSelectMenu = new QMenu(this);
    m_onSelectMenu->setStyleSheet(R"(
         QMenu {
                background-color: rgba(240, 240, 240, 0.9);
                border: 0.5px solid white;
                border-radius: 4px;
                padding: 4px 0;
            }

            QMenu::item {
                padding: 6px 20px;
                color: #333333;
                background-color: transparent;
            }

            QMenu::item:selected {
                background-color: rgba(220, 220, 220, 0.8);
                color: #000000;
            }

            QMenu::item:disabled {
                color: #aaaaaa;
            }
    )");
    m_onSelectMenu->addAction(m_action_deleteSelecedLine);

    connect(m_action_deleteSelecedLine, &QAction::triggered, this, [=]()
    {
        m_lineDrawer.deleteSelectedLine();
        update();
        m_onSelectMenu->hide();
    });
}

GLView::~GLView()
{
    makeCurrent();
    delete m_model;
    delete m_workPlane;
    delete m_viewCube;
    doneCurrent();
}

void GLView::beginDrawLines()
{
    b_drawLineState = true;
    m_lineDrawer.setCurrentLineColor(QVector4D(0.0f, 0.0f, 1.0f, 1.0f));
    m_lineDrawer.setSavedLineColor(QVector4D(1.0f, 1.0f, 0.0f, 1.0f));
}

void GLView::clearAllLines()
{
    m_lineDrawer.clearAllLines();
    update();
}

void GLView::undoLastLine()
{
    m_lineDrawer.undoLastLine();
    update();
}

void GLView::selectLine()
{
    b_selectLineState = true;
}

QVector3D GLView::screenToWorld_3D_PointSnap(const QPoint& pos)
{
    int x = pos.x();
    int y = height() - pos.y(); // 翻转y轴

    // 1. 生成鼠标射线（起点：相机位置；方向：视线方向）
    QVector3D camPos = m_viewMat.inverted().column(3).toVector3D(); // 射线起点
    QMatrix4x4 invMVP = (m_projectionMat * m_viewMat).inverted();

    // 屏幕坐标 → NDC坐标
    float ndcX = (2.0f * x) / width() - 1.0f;
    float ndcY = (2.0f * y) / height() - 1.0f;

    // 计算射线方向（通过近/远平面）
    QVector4D nearNDC(ndcX, ndcY, -1.0f, 1.0f);
    QVector4D farNDC(ndcX, ndcY, 1.0f, 1.0f);
    QVector3D nearWorld = (invMVP * nearNDC).toVector3D() / (invMVP * nearNDC).w();
    QVector3D farWorld = (invMVP * farNDC).toVector3D() / (invMVP * farNDC).w();
    QVector3D rayDir = (farWorld - nearWorld).normalized(); // 射线方向（单位向量）

    // 2. 优先吸附到直线端点
    const float endpointSnapThreshold = 0.1f; // 端点吸附阈值
    auto endpoints = m_lineDrawer.getAllEndpoints();
    QVector3D closestEndpoint;
    float minEndpointDistance = FLT_MAX;

    for (const auto& endpoint : endpoints) {
        QVector3D camToEndpoint = endpoint - camPos;
        float t = QVector3D::dotProduct(camToEndpoint, rayDir); // 端点在射线上的投影参数
        QVector3D projection = camPos + rayDir * t; // 端点在射线上的投影点
        float distance = (endpoint - projection).length();

        // 确保端点在射线前方且距离达标
        if (t > 0 && distance < minEndpointDistance && distance < endpointSnapThreshold) {
            minEndpointDistance = distance;
            closestEndpoint = endpoint;
        }
    }
    // 若找到端点，直接返回（端点吸附优先级高于网格）
    if (minEndpointDistance != FLT_MAX) {
        return closestEndpoint;
    }

    // 3. 吸附到工作平面网格交叉点
    const float gridSnapThreshold = 0.1f; // 网格吸附阈值
    QVector3D planeIntersection; // 射线与工作平面的交点

    // 3.1 计算射线与工作平面的交点
    if (m_workPlane->getRayPlaneIntersection(camPos, rayDir, m_workPlane->para(), planeIntersection)) {
        // 3.2 遍历所有网格交叉点，找最近的点
        QVector3D closestGridPoint;
        float minGridDistance = FLT_MAX;

        for (const QVector3D& gridPoint : m_workPlane->gridPoints()) {
            float distance = (planeIntersection - gridPoint).length();
            if (distance < minGridDistance && distance < gridSnapThreshold) {
                minGridDistance = distance;
                closestGridPoint = gridPoint;
            }
        }

        // 3.3 若找到符合条件的网格点，返回该点
        if (minGridDistance != FLT_MAX) {
            return closestGridPoint;
        }
    }

    if (m_workPlane->getRayPlaneIntersection(camPos, rayDir, m_workPlane->para(), planeIntersection))
    {
        return planeIntersection;
    }

    // 4. 未找到任何吸附点，返回射线默认点
    float defaultDistance = 5.0f;
    return camPos + rayDir * defaultDistance;
}


QVector3D GLView::screenToWorldRawRay(const QPoint& pos)
{
    int x = pos.x();
    int y = height() - pos.y();

    QVector3D camPos = m_viewMat.inverted().column(3).toVector3D();
    QMatrix4x4 invMVP = (m_projectionMat * m_viewMat).inverted();

    float ndcX = (2.0f * x) / width() - 1.0f;
    float ndcY = (2.0f * y) / height() - 1.0f;

    QVector4D farNDC(ndcX, ndcY, 1.0f, 1.0f);
    QVector3D farWorld = (invMVP * farNDC).toVector3D() / (invMVP * farNDC).w();

    const float rayLength = 100.0f;
    QVector3D rayDir = (farWorld - camPos).normalized();
    return camPos + rayDir * rayLength;
}

float GLView::rayLineDistance(
    const QPoint& mousePos,
    const QVector3D& rayOrigin,
    const QVector3D& rayDir,
    const QVector3D& lineStart,
    const QVector3D& lineEnd
) {
    QVector3D lineVec = lineEnd - lineStart;
    QVector3D originToLineStart = rayOrigin - lineStart;

    float a = QVector3D::dotProduct(rayDir, rayDir);
    float b = QVector3D::dotProduct(rayDir, lineVec);
    float c = QVector3D::dotProduct(lineVec, lineVec);
    float d = QVector3D::dotProduct(rayDir, originToLineStart);
    float e = QVector3D::dotProduct(lineVec, originToLineStart);
    float denominator = a * c - b * b;

    float s, t;
    if (denominator < 1e-6) {
        s = 0.0f;
        t = d / a;
    }
    else {
        s = (b * e - c * d) / denominator;
        t = (a * e - b * d) / denominator;
    }
    s = qBound(0.0f, s, 1.0f);
    t = qMax(0.0f, t);

    auto worldToScreen = [&](const QVector3D& worldPos) -> QPointF {
        QVector4D clipPos = m_projectionMat * m_viewMat * QVector4D(worldPos, 1.0f);
        QVector3D ndcPos = clipPos.toVector3D() / clipPos.w();
        float x = (ndcPos.x() + 1.0f) * 0.5f * width();
        float y = height() - (ndcPos.y() + 1.0f) * 0.5f * height();
        return QPointF(x, y);
        };

    QPointF lineStartScreen = worldToScreen(lineStart);
    QPointF lineEndScreen = worldToScreen(lineEnd);
    QPointF mouseScreen = QPointF(mousePos);

    QPointF lineVecScreen = lineEndScreen - lineStartScreen;
    QPointF mouseToStartScreen = mouseScreen - lineStartScreen;
    float dotProduct = mouseToStartScreen.x() * lineVecScreen.x() + mouseToStartScreen.y() * lineVecScreen.y();
    float len2 = lineVecScreen.x() * lineVecScreen.x() + lineVecScreen.y() * lineVecScreen.y();
    float screenDistance;

    if (len2 < 1e-6) {
        screenDistance = hypot(mouseToStartScreen.x(), mouseToStartScreen.y());
    }
    else if (dotProduct <= 0.0f) {
        screenDistance = hypot(mouseToStartScreen.x(), mouseToStartScreen.y());
    }
    else if (dotProduct >= len2) {
        QPointF mouseToEndScreen = mouseScreen - lineEndScreen;
        screenDistance = hypot(mouseToEndScreen.x(), mouseToEndScreen.y());
    }
    else {
        float tScreen = dotProduct / len2;
        QPointF closestOnLineScreen = lineStartScreen + tScreen * lineVecScreen;
        QPointF delta = mouseScreen - closestOnLineScreen;
        screenDistance = hypot(delta.x(), delta.y());
    }

    return screenDistance;
}

bool GLView::checkLineHit(const QPoint& mousePos)
{
    QVector3D rayOrigin = m_viewMat.inverted().column(3).toVector3D();
    QVector3D rayEnd = screenToWorldRawRay(mousePos);
    QVector3D rayDir = (rayEnd - rayOrigin).normalized();

    const float hitThreshold = 1.8f;
    float minDist = FLT_MAX;
    int hitIndex = -1;
    auto& lines = m_lineDrawer.getAllLines();

    for (size_t i = 0; i < lines.size(); ++i) {
        const auto& line = lines[i];
        QVector3D lineStart = line.first;
        QVector3D lineEnd = line.second;

        // 排除端点附近区域
        float distToStart = rayLineDistance(mousePos, rayOrigin, rayDir, lineStart, lineStart);
        float distToEnd = rayLineDistance(mousePos, rayOrigin, rayDir, lineEnd, lineEnd);
        const float endpointSnapThreshold = 5.0f;
        if (distToStart < endpointSnapThreshold || distToEnd < endpointSnapThreshold) {
            continue;
        }

        float dist = rayLineDistance(mousePos, rayOrigin, rayDir, lineStart, lineEnd);
        if (dist < minDist && dist < hitThreshold) {
            minDist = dist;
            hitIndex = static_cast<int>(i);
        }
    }

    m_lineDrawer.setSelectedIndex(hitIndex);
    return hitIndex != -1;
}

bool GLView::getRayPlaneIntersection(
    const QVector3D& rayOrigin,
    const QVector3D& rayDir,
    const QVector3D& planeOrigin,
    const QVector3D& planeNormal,
    QVector3D& outIntersection
) {
    float denominator = QVector3D::dotProduct(rayDir, planeNormal);
    if (qAbs(denominator) < 1e-6) return false;

    float t = QVector3D::dotProduct(planeOrigin - rayOrigin, planeNormal) / denominator;
    if (t < 0) return false;

    outIntersection = rayOrigin + rayDir * t;
    return true;
}

void GLView::initializeGL()
{
    initializeOpenGLFunctions();
    glEnable(GL_DEPTH_TEST);
    glEnable(GL_POLYGON_OFFSET_FILL); // 启用多边形偏移，解决平面与网格线深度冲突

    initShader(m_lightShader, "./shader/modelLoading.vert", "./shader/modelLoading.frag");
    initShader(m_viewCubeShader, "./shader/viewCubeTexture.vert", "./shader/viewCubeTexture.frag");
    initShader(m_drawLineShader, "./shader/line.vert", "./shader/line.frag");

    m_model = new Model(this);
    m_camera.lastFrame = QTime::currentTime().msecsSinceStartOfDay() / 1000.0;

    initWorkPlane();
    m_lineDrawer.init();

    m_viewCube = new ViewCube(this, ":/MainWindow/resources/viewcube.png", width(), height());
}

void GLView::resizeGL(int w, int h)
{
    glViewport(0, 0, w, h);

    m_camera.SCR_WIDTH = w;
    m_camera.SCR_HEIGHT = h;

    m_projectionMat.setToIdentity();
    m_projectionMat.perspective(m_camera.Zoom, (float)w / h, 0.1f, 100.0f);
}

void GLView::paintGL()
{
    glClearColor(0.2f, 0.3f, 0.3f, 1.0f);
    glClear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT); // 同时清除深度缓冲

    float currentFrame = QTime::currentTime().msecsSinceStartOfDay() / 1000.0;
    m_camera.deltaTime = currentFrame - m_camera.lastFrame;
    m_camera.lastFrame = currentFrame;

    // 确保渲染顺序：先平面，再模型，最后直线（避免直线被遮挡）
    m_lightShader.bind();
    m_viewMat = b_drawLineState ? m_viewMat : m_camera.GetViewMatrix();
    m_lightShader.setUniformValue("projection", m_projectionMat);
    m_lightShader.setUniformValue("view", m_viewMat);
    m_lightShader.setUniformValue("model", m_modelMat);

    // 1. 先绘制工作平面（最底层）
    m_workPlane->drawPlane();
    // 2. 绘制模型（中间层）
    m_model->Draw(m_lightShader);
    m_lightShader.release();

    // 3. 最后绘制直线（最上层，确保在平面上方可见）
    m_drawLineShader.bind();
    m_drawLineShader.setUniformValue("model", m_modelMat);
    m_drawLineShader.setUniformValue("view", m_viewMat);
    m_drawLineShader.setUniformValue("projection", m_projectionMat);
    m_lineDrawer.draw(m_drawLineShader);
    m_drawLineShader.release();

    // 绘制ViewCube
    if (m_viewCube) {
        m_viewCubeShader.bind();
        m_modelCube.setToIdentity();
        m_modelCube.scale(0.5f);

        m_viewMatNoTrans = b_drawLineState ? m_viewMatNoTrans : m_camera.GetViewMatrix4VieweCube();
        m_projection4ViewCube.setToIdentity();
        float aspect = (float)width() / height();
        m_projection4ViewCube.perspective(45.0f, aspect, 0.1f, 100.0f);

        QMatrix4x4 offViewCube;
        offViewCube.setToIdentity();
        QVector2D projOffset(0.90f, 0.80f);
        offViewCube.translate(projOffset.x(), projOffset.y(), 0.0f);
        m_finalProjection = offViewCube * m_projection4ViewCube;

        m_viewCubeShader.setUniformValue("model", m_modelCube);
        m_viewCubeShader.setUniformValue("view", m_viewMatNoTrans);
        m_viewCubeShader.setUniformValue("projection", m_finalProjection);
        m_viewCube->draw(m_viewCubeShader, m_modelCube, m_viewMatNoTrans, m_finalProjection);
        m_viewCubeShader.release();
    }
}

void GLView::initShader(QOpenGLShaderProgram& shader, const QString& vertexFile, const QString& fragFile)
{
    bool result = shader.addShaderFromSourceFile(QOpenGLShader::Vertex, vertexFile);
    if (!result) qDebug() << shader.log();

    result = shader.addShaderFromSourceFile(QOpenGLShader::Fragment, fragFile);
    if (!result) qDebug() << shader.log();

    result = shader.link();
    if (!result) qDebug() << shader.log();
}

bool GLView::event(QEvent* e)
{
    makeCurrent();

    if (e->type() == QEvent::MouseButtonPress) {
        auto mouseEvent = static_cast<QMouseEvent*>(e);
        if (mouseEvent->button() == Qt::LeftButton) {
            ViewCube::CubeFaceType face = m_viewCube->getFirstHitFace(
                mouseEvent->position().x(), mouseEvent->position().y(),
                width(), height(), m_viewMatNoTrans, m_finalProjection
            );
            if (face != ViewCube::CubeFaceType::None) {
                m_camera.FitView(static_cast<int>(face));
            }
            else if (b_drawLineState) {
                bool isHit = b_selectLineState ? checkLineHit(mouseEvent->pos()) : false;
                if (isHit) {
                    update();//更新（被选中的直线变为红色）
                    QPoint pos = mapFromGlobal(mouseEvent->pos());
                    m_onSelectMenu->move(pos);
                    m_onSelectMenu->show();
                }
                else {
                    QVector3D startPos = screenToWorld_3D_PointSnap(mouseEvent->pos());
                    m_lineDrawer.startDraw(startPos);

                    if (m_enableDrawPlane && m_workPlane) {
                        PlanePara workPara = m_workPlane->para();
                        QVector3D workNormal = workPara.normal.normalized();
                        QVector3D camFront = (m_viewMat.inverted().column(2).toVector3D()).normalized();

                        QVector3D projCamFront = camFront - QVector3D::dotProduct(camFront, workNormal) * workNormal;
                        projCamFront.normalize();
                        m_drawPlaneNormal = projCamFront;

                        if (QVector3D::dotProduct(m_drawPlaneNormal, camFront) < 0) {
                            m_drawPlaneNormal = -m_drawPlaneNormal;
                        }

                        m_drawPlaneOrigin = startPos;
                    }
                }
            }
        }
        else if (mouseEvent->button() == Qt::RightButton) {
            if (b_drawLineState) {
                m_lineDrawer.finishDraw();
                b_drawLineState = false;
            }
            update();
        }
    }
    else if (e->type() == QEvent::MouseButtonRelease) {
        auto mouseEvent = static_cast<QMouseEvent*>(e);
        if (mouseEvent->button() == Qt::LeftButton && b_drawLineState) {
            m_lineDrawer.saveDrawnLine();
            update();
        }
    }
    else if (e->type() == QEvent::MouseMove) {
        auto mouseEvent = static_cast<QMouseEvent*>(e);
        if (m_lineDrawer.isDrawing()) {
            QVector3D currentPos;
            QVector3D camPos = m_viewMat.inverted().column(3).toVector3D();
            QVector3D rawEnd = screenToWorld_3D_PointSnap(mouseEvent->pos());
            QVector3D rayDir = (rawEnd - camPos).normalized();

            bool hasValidSnapPoint = false;
            auto endpoints = m_lineDrawer.getAllEndpoints();
            const float endpointSnapThreshold = 0.1f;
            for (const auto& endpoint : endpoints) {
                if ((endpoint - rawEnd).length() < endpointSnapThreshold) {
                    hasValidSnapPoint = true;
                    break;
                }
            }

            if (!hasValidSnapPoint) {
                const float gridSnapThreshold = 0.1f;
                for (const QVector3D& gridPoint : m_workPlane->gridPoints()) {
                    if ((gridPoint - rawEnd).length() < gridSnapThreshold) {
                        hasValidSnapPoint = true;
                        break;
                    }
                }
            }

            if (m_enableDrawPlane && !hasValidSnapPoint) {
                QVector3D constrainedEnd;
                if (getRayPlaneIntersection(camPos, rayDir, m_drawPlaneOrigin, m_drawPlaneNormal, constrainedEnd)) {
                    currentPos = constrainedEnd;
                }
                else {
                    currentPos = rawEnd;
                }
            }
            else {
                currentPos = rawEnd;
            }

            m_lineDrawer.updateDraw(currentPos);
            update();
        }
    }

    if (!b_drawLineState && m_camera.handle(e)) {
        update();
    }

    doneCurrent();
    return QWidget::event(e);
}

void GLView::initWorkPlane()
{
    PlanePara para;
    para.origin = QVector3D(0.0f, -1.0f, 0.0f);
    para.normal = QVector3D(0.0f, 1.0f, 0.0f); // 向上的法向量（Y轴）
    para.halfLength = 5.0f;
    para.gridCntPerEdge = 15;
    para.offset = 0.0f; // 平面基础偏移（Y=0.1f）

    m_workPlane = new WorkPlane();
    m_workPlane->initPlane(para);
}

modeLoading.vert

#version 450 core
layout (location = 0) in vec3 aPos;
layout (location = 1) in vec3 aColor;

out vec3 fragColor;
out vec2 screenPos;  // 输出屏幕坐标（用于渐变）

uniform mat4 model;
uniform mat4 view;
uniform mat4 projection;
uniform vec2 screenSize;  // 屏幕宽高

void main() {
    gl_Position = projection * view * model * vec4(aPos, 1.0);
    fragColor = aColor;
    // 计算屏幕坐标（标准化到0~1范围）
    screenPos = (gl_Position.xy / gl_Position.w + 1.0) * 0.5;
}

modeLoading.frag

#version 450 core
in vec3 fragColor;
in vec2 screenPos;  // 接收屏幕坐标
out vec4 FragColor;

// 渐变颜色参数（CAD风格深灰渐变）
vec3 topColor = vec3(0.25f, 0.25f, 0.25f);  // 顶部稍亮
vec3 bottomColor = vec3(0.15f, 0.15f, 0.15f);  // 底部稍暗

void main() {
    // 绘制模型时用原有颜色，否则用渐变色背景
    if (gl_FragCoord.z < 1.0) {  // 若该像素是模型（z值小于1）
        FragColor = vec4(fragColor, 1.0);
    } else {  // 否则是背景
        // 按Y坐标插值计算渐变颜色
        float t = screenPos.y;  // t=0是底部，t=1是顶部
        vec3 bgColor = mix(bottomColor, topColor, t);
        FragColor = vec4(bgColor, 1.0);
    }
}

viewCubeTexture.vert

#version 330 core
layout (location = 0) in vec3 aPos;      // 顶点位置
layout (location = 1) in vec2 aTexCoord; // 纹理坐标

out vec2 TexCoord;                       // 传递给片段着色器

uniform mat4 model;      // 模型矩阵
uniform mat4 view;       // 视图矩阵
uniform mat4 projection; // 投影矩阵

void main() {
    gl_Position = projection * view * model * vec4(aPos, 1.0);
    TexCoord = aTexCoord;
}

viewCubeTexture.frag

#version 330 core
out vec4 FragColor;

in vec2 TexCoord;       // 接收顶点着色器的纹理坐标

uniform sampler2D u_texture; // 纹理采样器

void main() {
    FragColor = texture(u_texture, TexCoord); // 直接采样纹理
}

line.vert

#version 330 core
layout (location = 0) in vec3 aPos; // 直线顶点位置

uniform mat4 model;
uniform mat4 view;
uniform mat4 projection;

void main()
{
    gl_Position = projection * view * model * vec4(aPos, 1.0);
}

line.frag

#version 330 core
out vec4 FragColor;

uniform vec4 lineColor; // 直线颜色（专用变量名，更贴合直线绘制场景）
uniform float lineWidth; // 可选：如需在着色器中处理线宽（需配合几何着色器）

void main()
{
    FragColor = lineColor;
}

[源码与示例程序下载]
